Smallest Electric Guitar

Photo by D. Carr and H. Craighead, Cornell.

The world's smallest electric guitar is 10 micrometers lengthy - towards size of an individual cellular - with six strings each about 50 nanometers, or 100 atoms, wide. Made by Cornell University researchers from crystalline silicon, it demonstrates a technology for a unique generation of electromechanical products.

Society's tiniest guitar - carved from crystalline silicon no larger than one mobile - has been made at Cornell University to demonstrate a technology that may have multiple uses in dietary fiber optics, shows, detectors and electronic devices.

The "nanoguitar" - made for enjoyable to illustrate technology - is just one of several structures that Cornell scientists believe are the planet's tiniest silicon technical products. Researchers made the unit at the Cornell Nanofabrication Facility, bringing microelectromechanical products, or MEMS, to a different, also smaller scale - the nano-sized globe.

"we've an innovative new technology for creating the littlest technical products, " said Harold G. Craighead, Cornell professor of used and manufacturing physics who's got the directed the task carried out by their doctoral student, Dustin W. Carr.

Your guitar has six strings, each sequence about 50 nanometers broad, the width of approximately 100 atoms. If plucked - by an atomic force microscope, as an example - the strings would resonate, but at inaudible frequencies. The entire framework is all about 10 micrometers long, about the size of just one mobile.

Photo by Charles Harrington, Cornell University

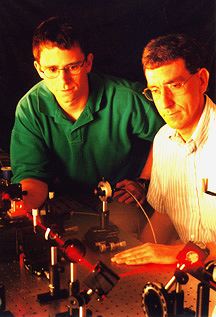

Dustin Carr, kept, Cornell graduate student in physics, and Harold Craighead, Cornell professor of applied and manufacturing physics, prove one of several planet's tiniest silicon mechanical devices. A 4-micrometer-wide interferometer (also little to see) is modulating the purple laser light, which could be useful for light shows also programs. The Cornell researchers made a number of the world's littlest silicon mechanical products on Cornell Nanofabrication Facility.

a scanning electron microscope image associated with guitar (identify above) won the prize for most readily useful checking electron micrograph within 41st Electron, Ion and Photon Beam Technology and Nanofabrication Conference in Dana aim, Calif., in-may. Carr and Craighead presented their particular study at the seminar and provided a paper toward Journal of Vacuum Science and Technology.

While the electric guitar resulted in an award-winning electron micrograph, it's the other frameworks and devices that'll be of genuine utility, Craighead says. Applications that need minor technical probes, high-speed reaction or measurement of really small causes can benefit using this technology. Including, technical power probes are made a lot smaller than an individual mobile, and forces associated with single biological molecules might be measured.

An efficient and fairly non-invasive way of calculating the tiny motion regarding the mechanical structures is carried out using the interference of laser light beams. The Cornell researchers made a Fabry-Perot interferometer using this technology. These interferometers utilize synchronous mirrors, certainly one of which moves relative to others. The motion is detected by variations in reflected light. The products presently under research in Craighead's laboratories tend to be moved by electrical forces. These electrically driven products can be used to modulate the strength associated with reflected light.

"this may be of great interest for light shows, " stated Craighead, former manager associated with the Cornell Nanofabrication Facility, a nationwide resource. "You could have arrays of the things since they're therefore tiny, with every one individually driveable. We've tremendous freedom with what we can build."

When you look at the almost term, such nanostructures may also be used to modulate lasers for dietary fiber optic communications. These researchers currently have shown the ability to make huge amplitude modulation of light indicators at large rates. "we could make reflected light pulses at a consistent level of 12 million per second, " Craighead stated. These types of a rate is faster compared to little bit price of many ethernet contacts.
